Water Well Drilling Rig

FYX180 is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is special suitable for mountain area and rock stratum water sourcing project.This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system.

  Contact Now
Product Details

Water Well Drilling Rig

Main features of China brand 100-200 meters deep water drilling machine for sale

1.Dual motor rotating mechanism

2.Centralized running system
3.Double cylinder propulsion system
4..Latest hydraulic technology, assorting with the excessive torque rotary hydraulic motor and the giant diameter hydraulic cylinder propulsion, appreciably limit the labor intensity, shorten the auxiliary time, enhance the effectivity of development and engineering quality.
5.stable journeying system

6.Triple pump collect

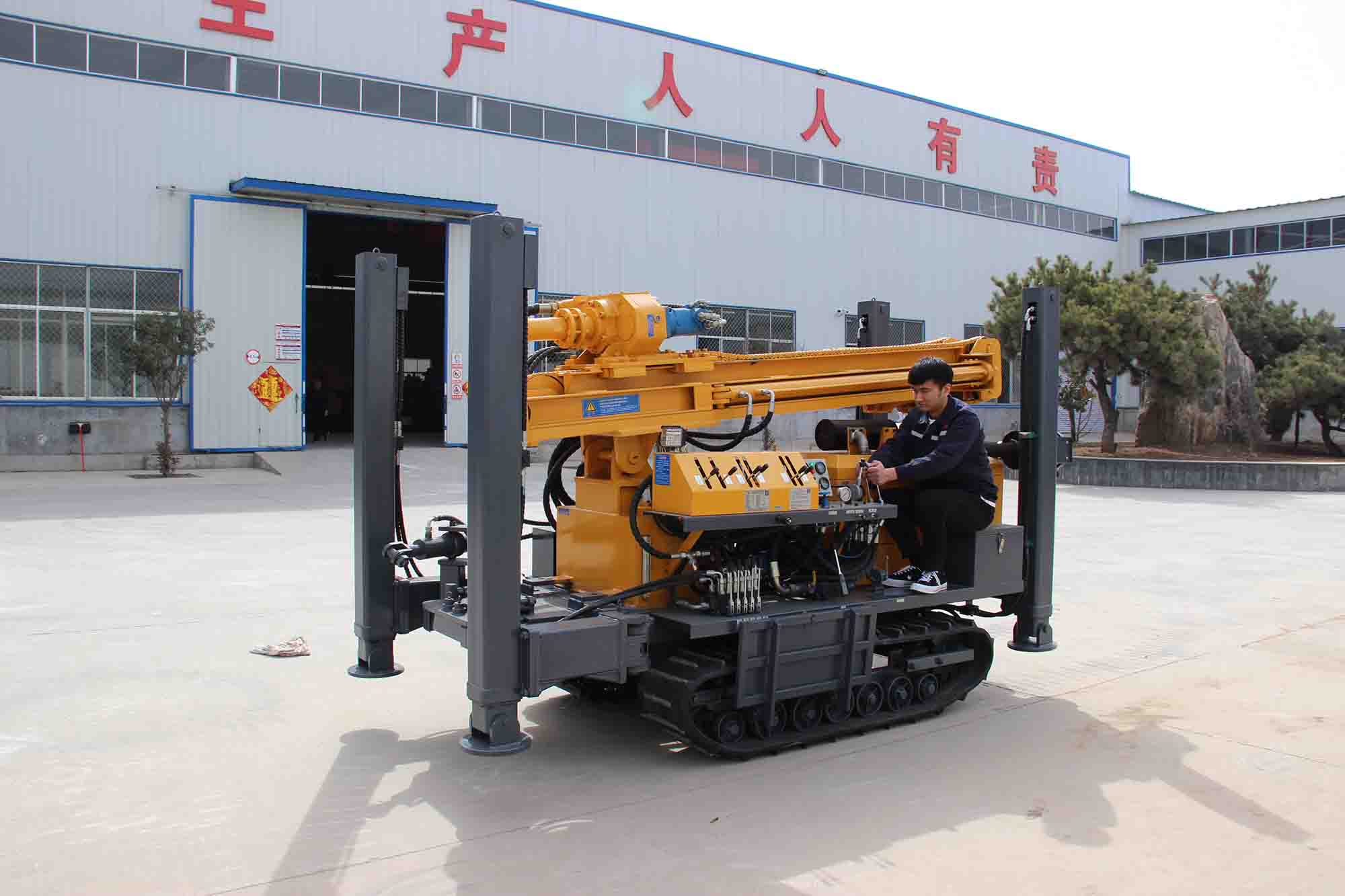

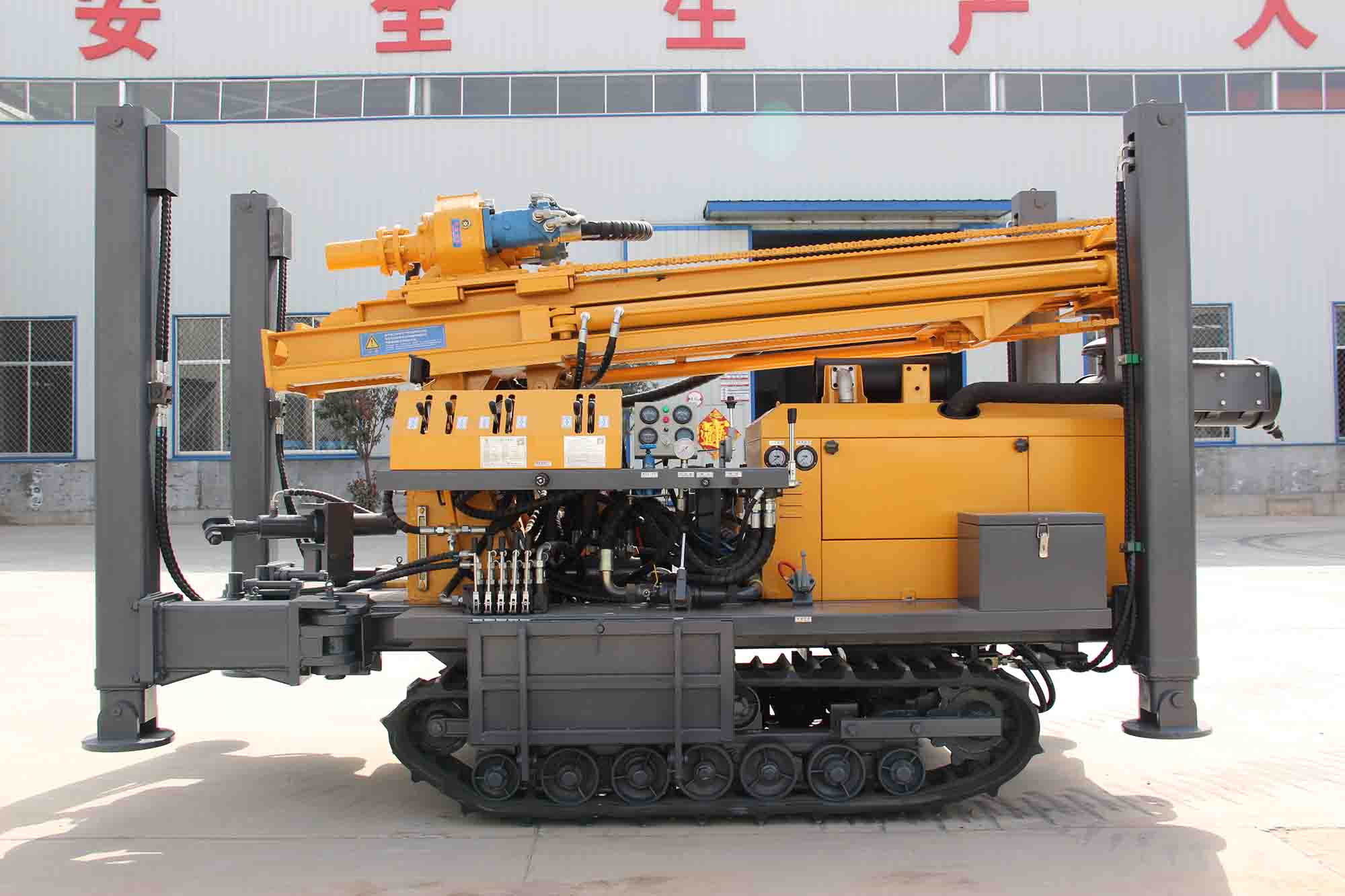

water well drilling rig

water well drilling rig

Product parameters:

Technical Parameters of FYX180 Crawler Type Water Well Drilling Rig

type

FYX180

The weight

4.5T

Dimension

3950*1630*2250mm

The hole diameter

140-254mm

Drilling depth

180m

One-time advance length

3.3m

Walking speed

2.5KM/H

Climbing angles

30

Power

55kw

Using air pressure

1.7-2.5MPA

Air consumption

17-31

Drill pipe length

1.5m 2.0m 3.0m

Drill pipe diameter

76mm,89mm

Rig lifting force

12T

Swing speed

45-65rpm

Swing torque

3200-4600N.m

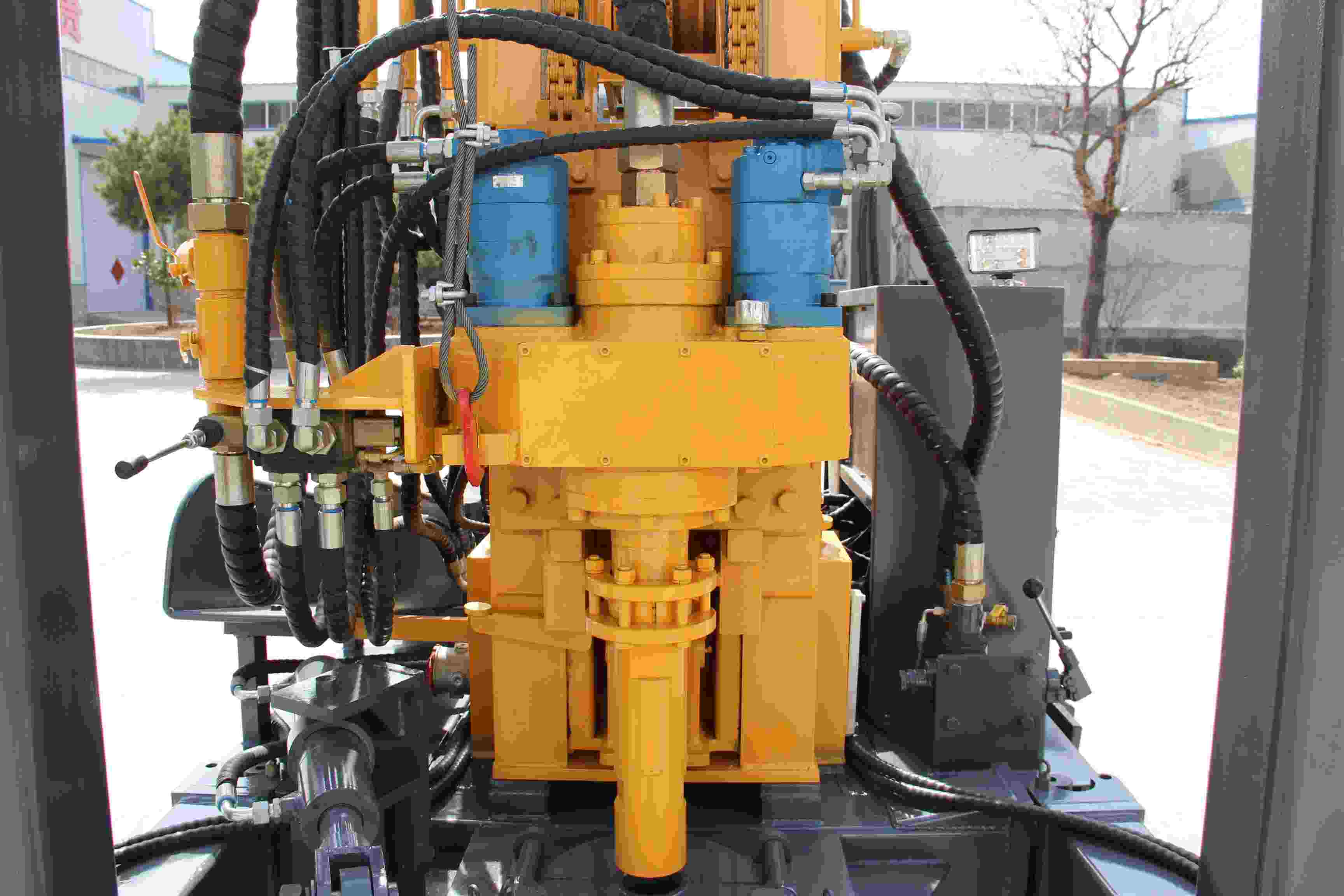

Hydraulic power head, more powerful, faster drilling speed, larger diameter

Hydraulic power head

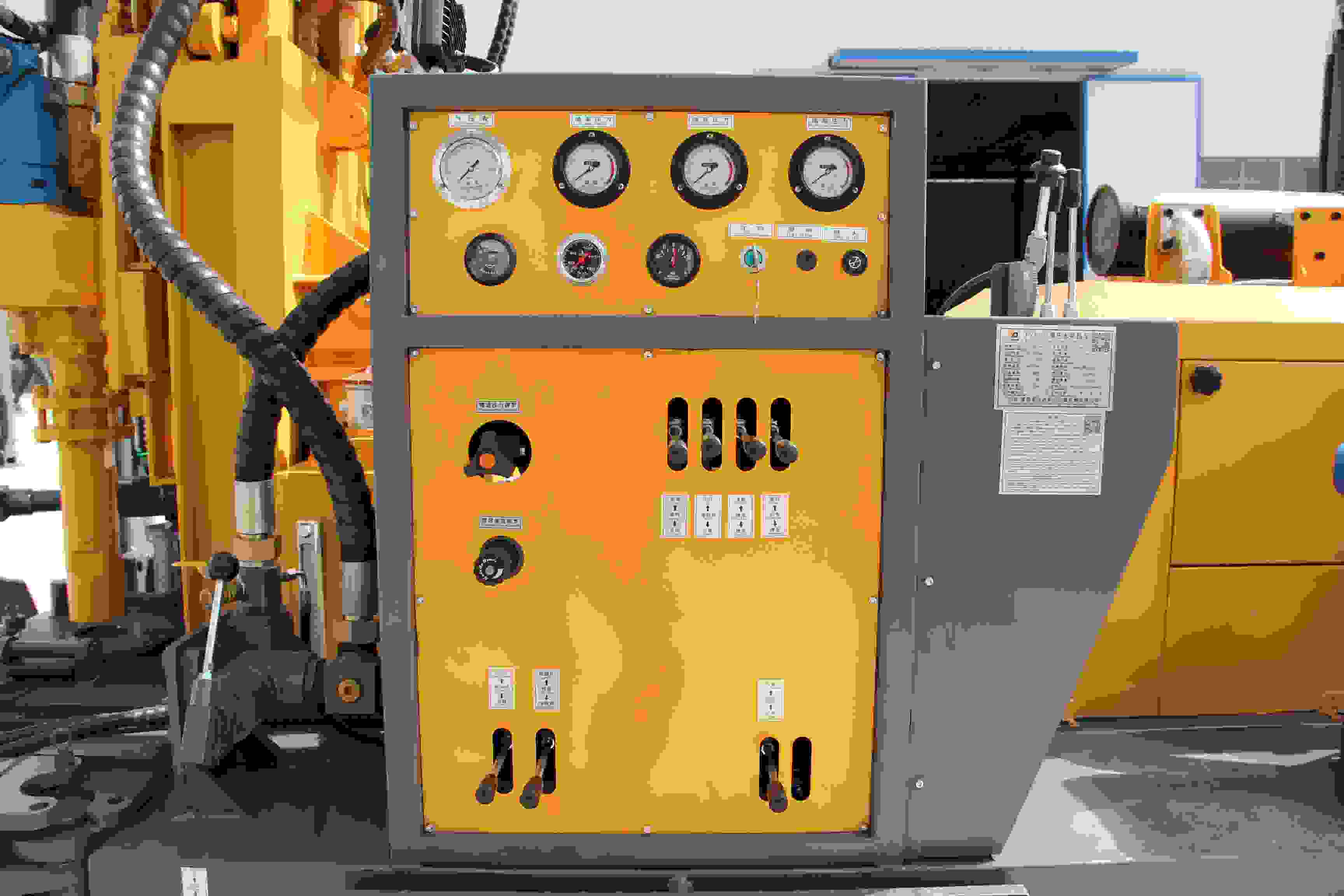

The vehicle control joystick and instrument integration platform are easy to operate and reduce labor costs.

console

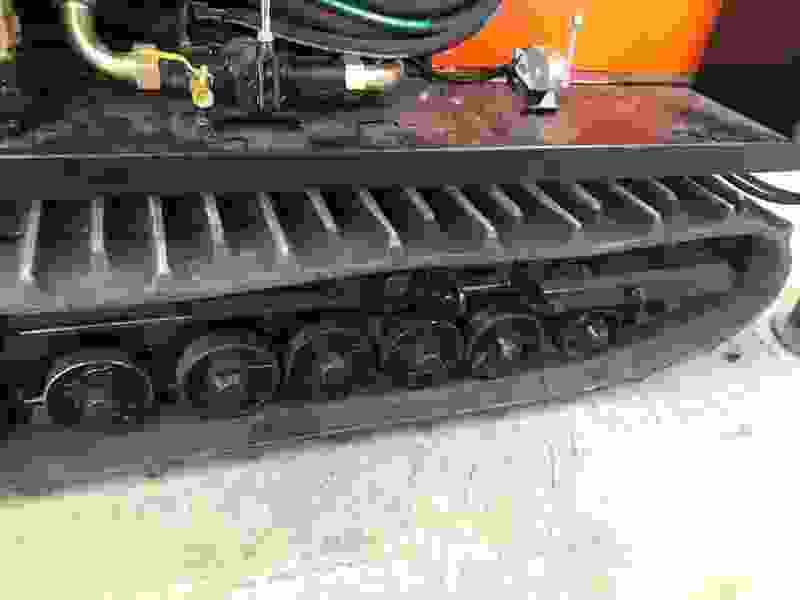

The all-terrain crawler chassis not only increases the application range of the drilling rig, but also increases the stability of the whole machine.

track

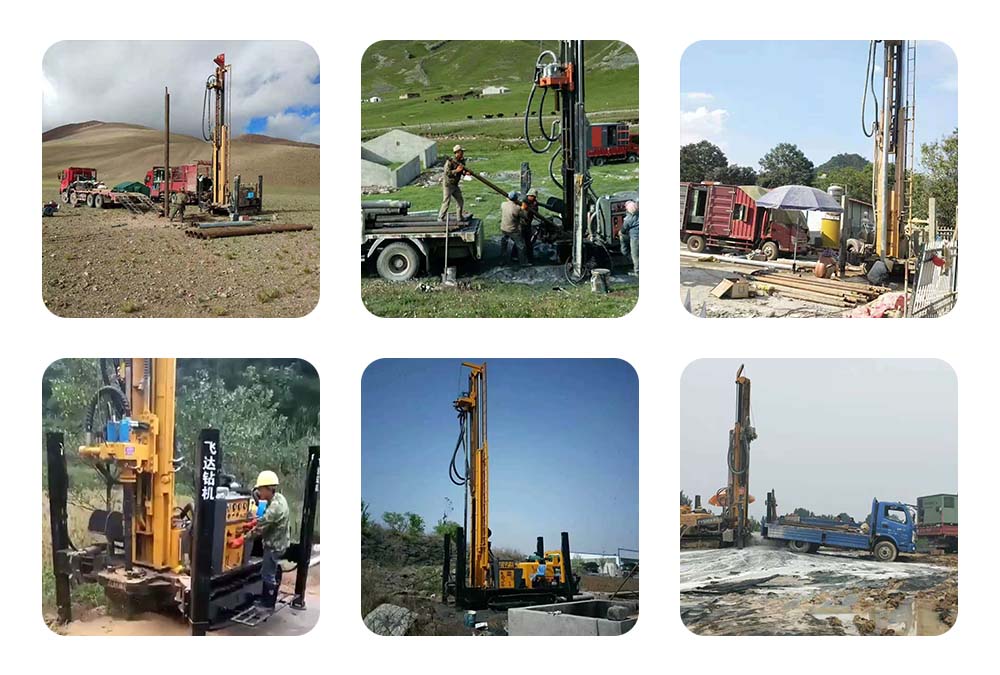

Application:

application

Customer visits and patent certificates:

Customer visits and patent certificates

FAQ:

1.what can you buy from us?

Well Drilling Machine,Drilling Tools and Accessories,Screw Air Compressor,Excavator

2. How can we guarantee quality?

Always a pre-production sample before mass production;always final inspection is done before shipment;and our main unit has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide machine installation and operation videos.

3.Can you do OEM for me?

We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

4.Are you a manufacturer or trading company?

We are professional manufacturer with big modern factory in ShanDong,China.

5.Do you have any certificates for your machine?

All of our products coming with the certificates of CE,ISO9001、EPA.

6. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF;

Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Cas

LanguageSpoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
