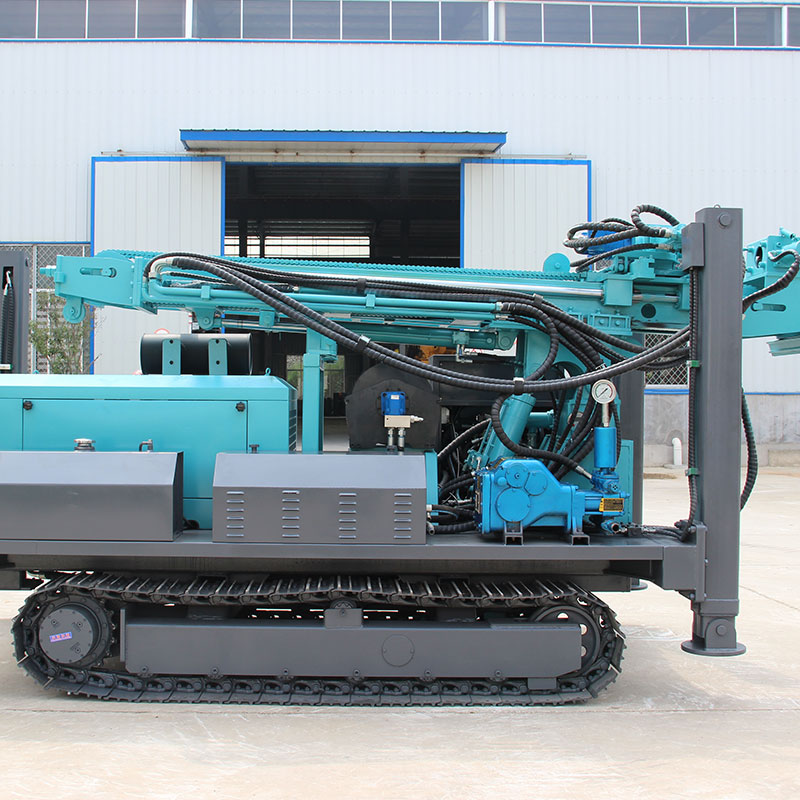

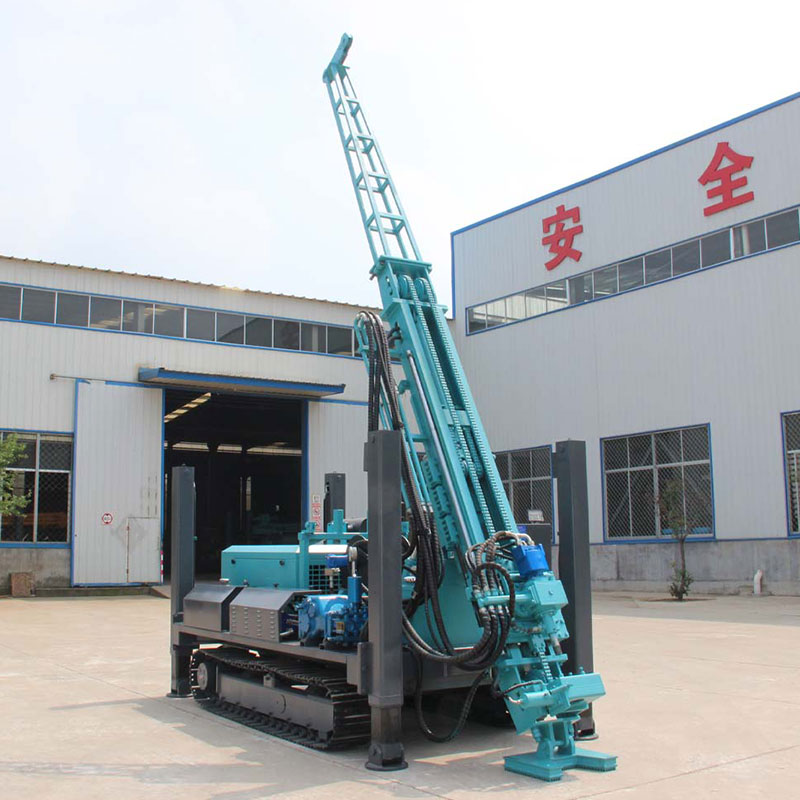

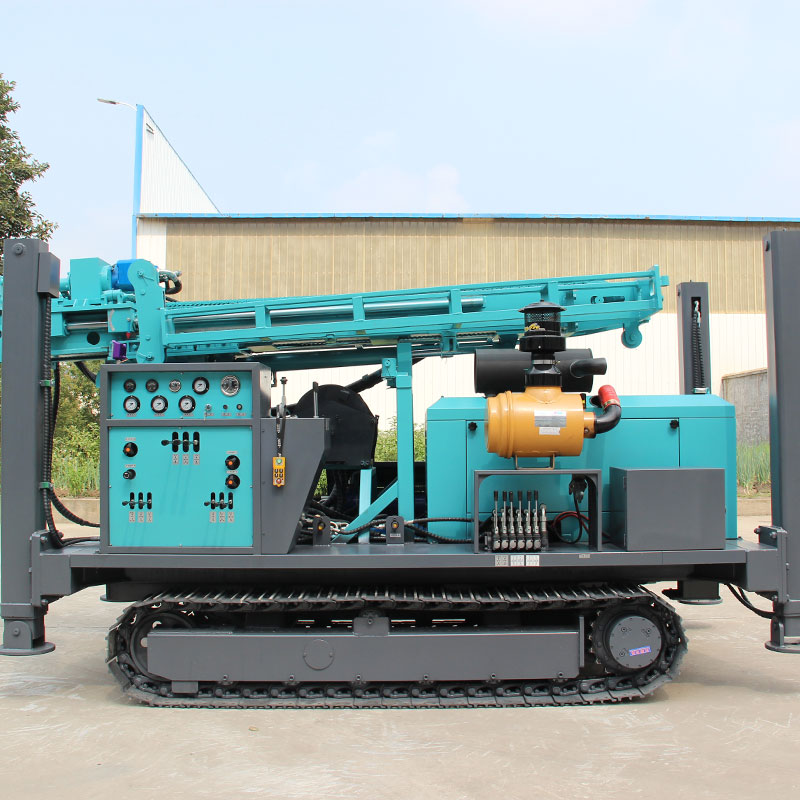

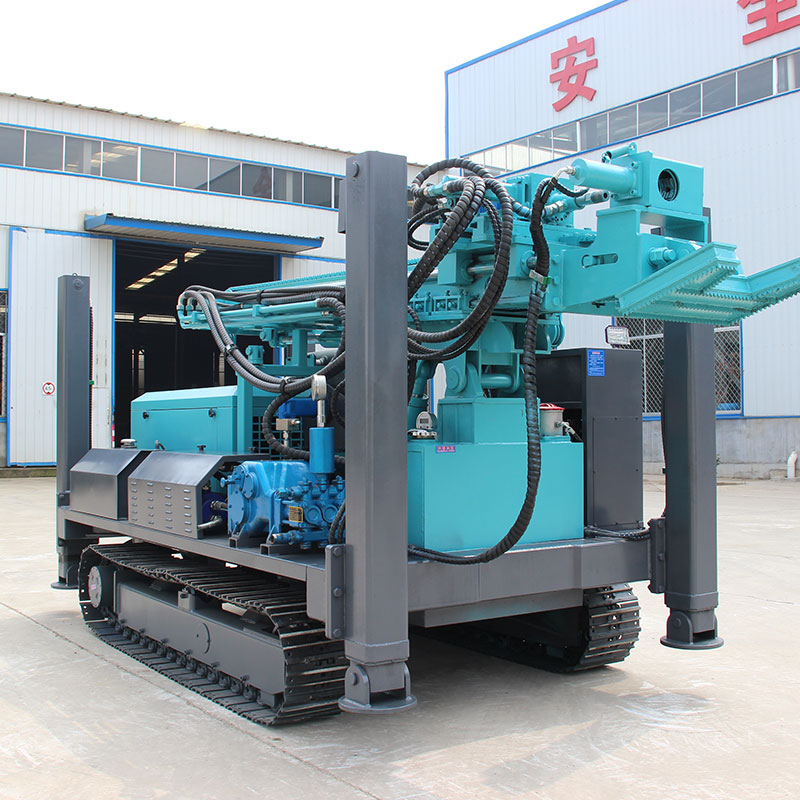

FD600 Core Drilling Equipment For Sale
Good drilling quality: The borehole diameter is regular and the hole wall is relatively stable, providing good wellbore conditions for subsequent logging, hydrological testing, installation of monitoring instruments, etc.
Environmental protection: Compared with pit exploration, drilling causes relatively less damage to surface vegetation and the environment.
Reduce auxiliary time: Core drilling rigs with high degree of mechanization and automation reduce manual operation intensity and auxiliary time.
Core Drilling Equipment Description
The core and irreplaceable advantage of core drilling rigs is their ability to provide high-quality, undisturbed, in-situ underground rock samples, which are the foundation for accurate geological evaluation, resource estimation, and scientific research. The high efficiency of wireline coring technology, its adaptability to complex formations and deep boreholes, and its high-precision directional capabilities have given it an unshakable position in mineral exploration, engineering surveys, and scientific research. While the cost per unit footage may be higher than some other drilling methods, the comprehensive benefits of the quality and depth of information obtained are unparalleled.
Core drilling equipment details
Mechanical Top Drive Head:Realizes the function integration of mud drilling and pneumatic hammer drilling, also can provide high speed 1120 rpm and large torque
Mechanical Drive;The main shaft of the drill adopts mechanical transmission, which doubles the transmission efficiency, greatly reduces the power consumption, and is more efficient and energy-saving.

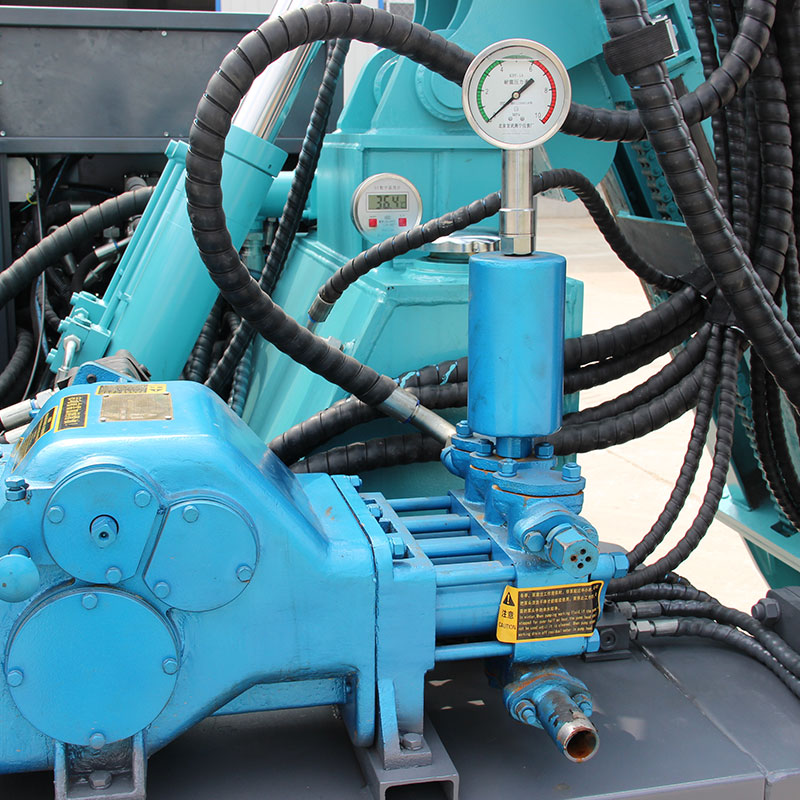

Twin Oil Pump:The rig uses dual oil pumps for oil supply, and the hydraulic systemuses shunt and confluence technology.Single pump is used whendrilling, and double pump is used when drilling, which has less powerloss and short auxiliary time.
Core drilling equipment parameters
| Drilling capacity | BTV(m) | 650 |
| NTW(m) | 600 | |
| HTW(m) | 300 | |
| hydraulic system | Cooling method | Water cooling |
| Engine parameters | Model | Yuchai 91kw |
| Rated power | 91 | |
| Rated speed | 2200 | |
| Power parameters | Maximum torque(N,m) | 1600 |
| Maxcimmum speed(rpm) | 1400 | |
| Feed stroke(m) | 2 (Optional) | |
| Lifting force(T) | 16 | |
| Propulsive force(T) | 8 | |
| Rope coring winch parameters | Rope capacity (m) | 800 |
| Lifting force (kN) | 15 | |
| Lifting speed (min) | 110 | |
| Wire rope diameter (mm) | 6 | |
| Carriage Parameters | Overall Height (m) | 7 |
| Drilling Angle (°) | 45-90 | |
| Compensation Stroke (mm) | 900 | |
| Gripper parameters | BQ/NQ/HQ/PQ | |
| Machine weight（T） | 5.7 | |
FAQ
1. Are you a manufacturer or just a trading company?
We are both. We have our own factory. We also have many long-term relationships with factories.
2. What is your minimum order quantity?
Our minimum order quantity is 1 piece or 1 full set. The price may vary depending on the order quantity. You are welcome to order samples to test our quality.
3. Do you accept OEM & ODM?
Yes, both are acceptable. Please tell us your requirements or design drawings.
4. What is the delivery time?
It depends on the availability, usually about 15-25 days. If the product is in stock, it is usually only 5-10 days.
5. Can I visit your factory before ordering?
Of course, please contact us for the address and delivery timeline.
