Water Borehole Drilling Machine For Sale
Fast drilling speed: The powerful power system and efficient drilling method can quickly penetrate the formation, greatly shortening the well completion cycle. Drilling tens or even hundreds of meters a day is common, while manual well digging is extremely inefficient.
Good wellbore verticality: The drilling rig has good guidance and can ensure the wellbore is vertical, which is conducive to the subsequent installation and operation of pipe laying and pumping equipment.
Precise construction: Reduce unnecessary soil excavation and waste soil disposal.
Product Description
Water well drilling rigs are specialized, highly technologically integrated engineering machines that break up the ground through impact, rotation, or a combination of these actions. Recirculating media removes drill cuttings, ultimately creating a borehole for purposes such as water extraction or geothermal development. They come in a variety of types, with core components including the power system, drill rig, rotary/feed unit, hoist system, circulation system, and drilling tools. Selecting the appropriate rig type and drilling technology is crucial for completing water well projects efficiently, safely, and economically, while also ensuring strict compliance with environmental and water conservation regulations.
Product Details
High-efficiency dual air flow: dual air filter filtration system ensures that the engine can work normally under harsh working conditions. At the same time, proper maintenance of the dual air filters can greatly reduce maintenance costs.
Powerful engine: This compact machine features a powerful engine powered by a 55kW four-cylinder diesel engine. Its continuous power output is the ultimate guarantee for your construction work. Its high power output and low energy consumption provide exceptional economic performance.

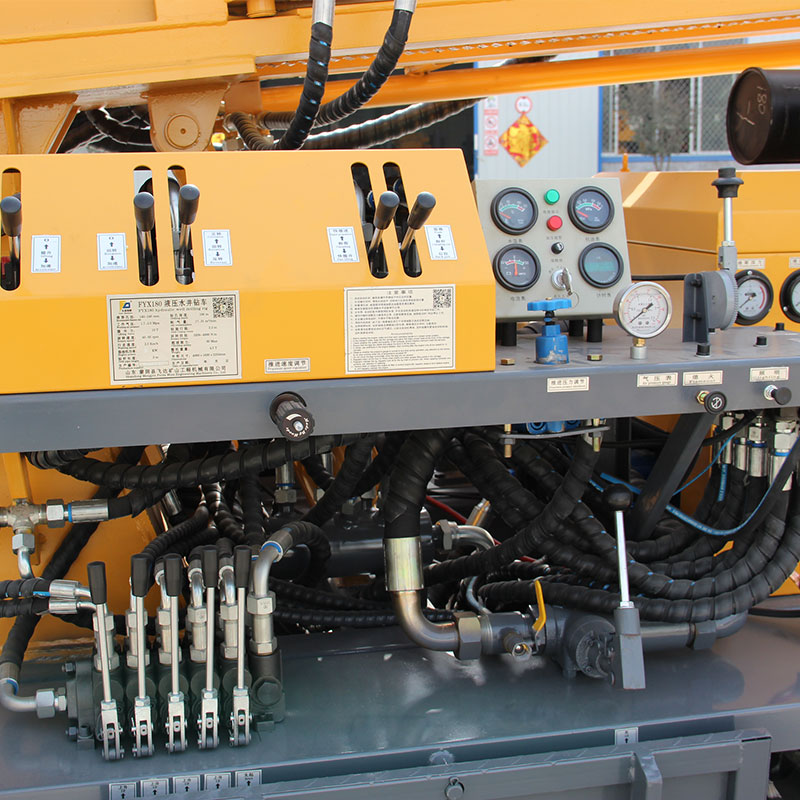

Operation panel: The parallel operation panel is clear at a glance and easy to operate. It can be controlled within a small space, which greatly reduces the operator's workload.
Technical Parameters
| Power Type | Diesel |
| Origin | Shandong, China |
| Dimensions (L * W * H) | 3950 * 1630 * 2250 mm |
| Weight | 4500 kg |
| Mechanical Test Report | Provided |
| Core Component Warranty | 1 year |
Core Components | Motor, Pump, Engine |
Drilling Depth | Maximum 180 meters |
| Drill rod diameter (mm) | 76mm - 89mm |
| Hole diameter (mm) | 140-254mm |
| Drill rod length (m) | 1.5m 2.0m 3.0m |
| Walking speed (km/h) | Walking speed (km/h) 2.5km/h |
| Equipped capacitor (kW) | 55kW |
| Used air pressure (MAP) | 1.7-2.5MAP |
| Oscillation speed (rpm) | 45-70rpm |
| Penetration efficiency (m/h) | 10-35m/h |
FAQ
1.Are you manufacture?
Ans: Yes, we are factory with more than 20 years ofmanufacturing experience.
2.What is your terms of payment?
Ans: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages beforyou pay the balance
3.What is your terms of delivery?
Ans: EXW, FOB, CFR, CIF.
4. How about your delivery time?
Ans: Generally, it wil take 7 -10 working days after receiving your advance payment, The specific delivery timedepends on the items and the quantity of your order
5.What is the warranty ofour machine?
Ans:Our main machine enjoys a l year warranty, during this time all accessories broken can be changed for anew one.And we provide videos for machine install and operation.
