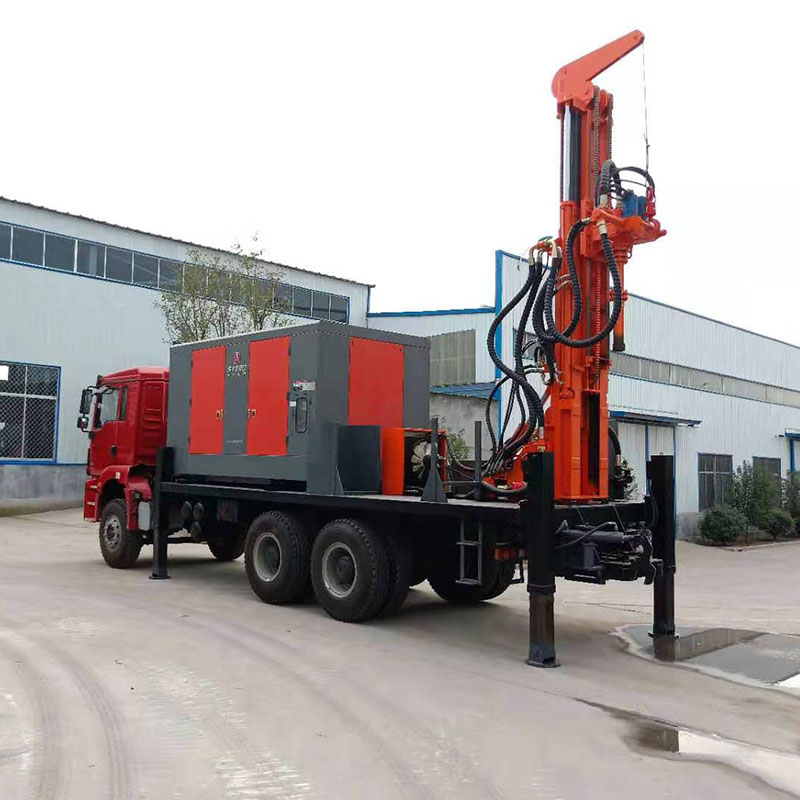

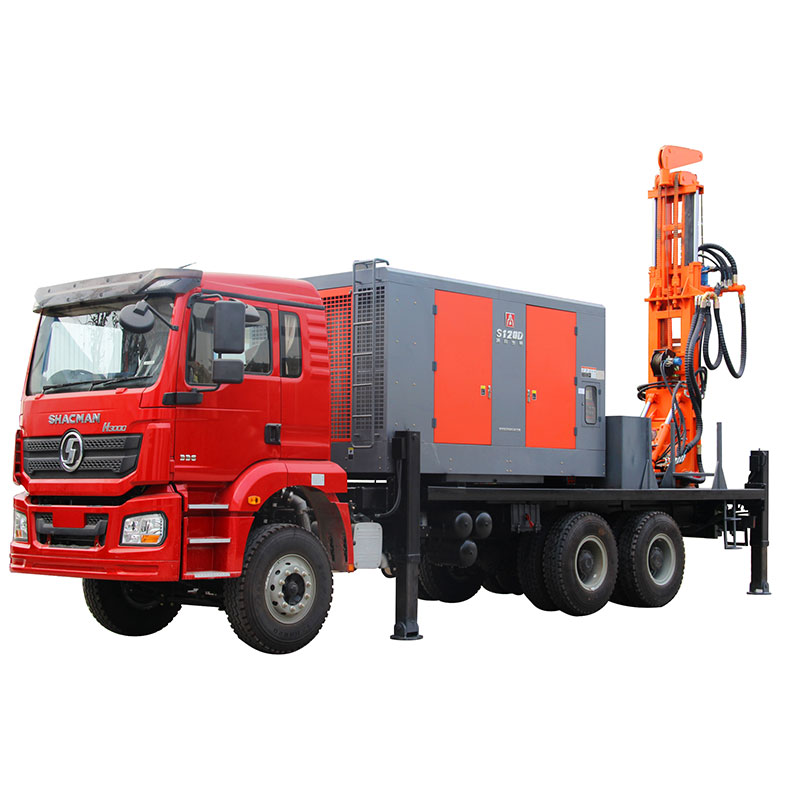

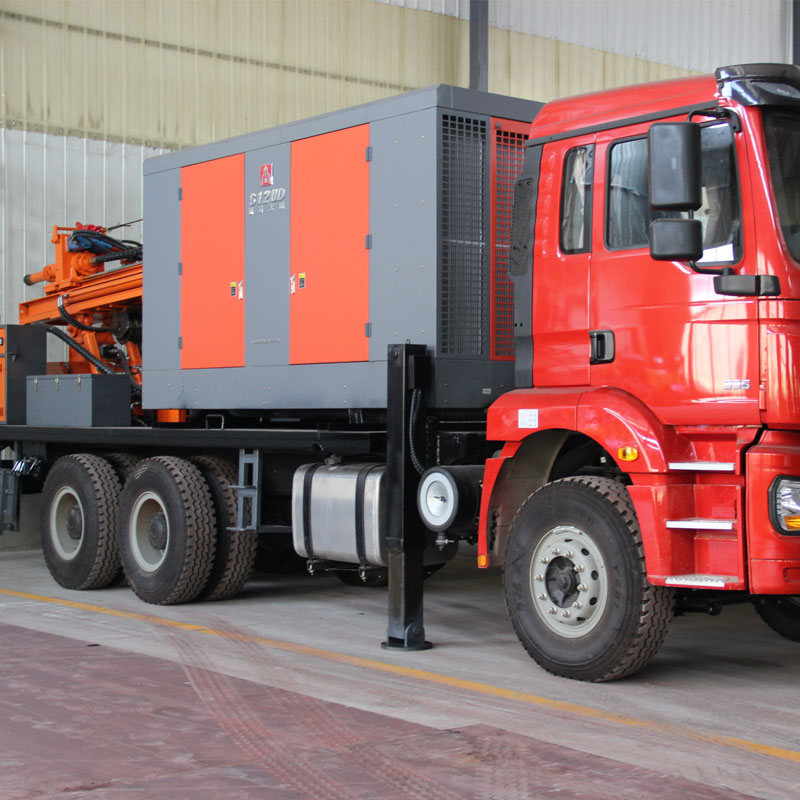

Water Well Drilling Rig Truck
Self-propelled: The drilling rig itself is a complete transport unit, without the need for additional trailers or complicated disassembly and loading processes.
Fast speed: Relying on the truck's own powerful power, it can travel quickly on highways and good unpaved roads, greatly shortening the time to reach the new construction site.
High efficiency: Greatly improves equipment utilization and reduces non-productive time consumption.
Water Well Drilling Rig Truck Description
Truck-mounted water well drilling rigs are modern drilling equipment that integrates both transportation and drilling functions, with high mobility and rapid drilling as their core advantages. By integrating the entire drilling system onto a heavy-duty truck chassis, they enable a "drilling on arrival" operation model. They have become a major force in the shallow-to-medium stratum water well drilling market, particularly suitable for decentralized well drilling projects that require frequent movement and high efficiency.
Water well drilling rig Truck details

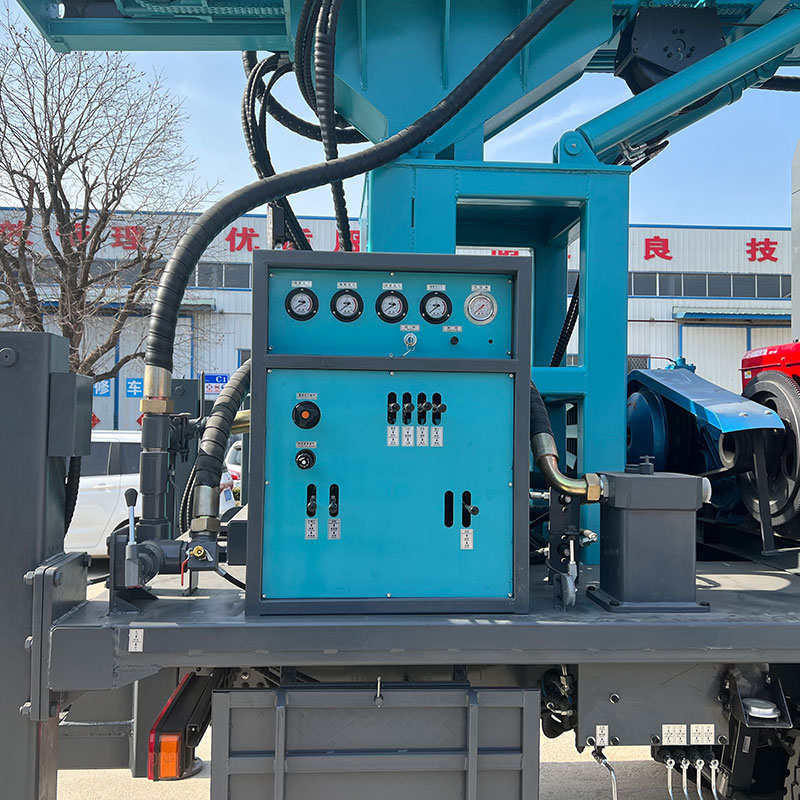

The console is in good operating condition: its display interface is clear and sharp, and all kinds of information are clear at a glance; the functional configuration is comprehensive and complete, and the operation is intuitive and easy to use; the overall operation is stable and smooth, and the response is quick, ensuring an efficient and reliable operating experience.
Dual cooling system: equipped with oil cooling and air cooling to keep the machine running normally under high-intensity work
Mud pump: The mud pump is the core power component of the entire drilling circulation system and is often called the "heart" of drilling. Its main function is to provide the high-pressure power required for the circulation of drilling fluid (commonly known as mud).
Water well drilling rig Truck technical parameters
| Model | FYC280 |
| Dimensions（mm） | 10600 × 2500 × 3550 |
| Weight（t） | 13 |
| Drilling Diameter（mm） | 140-300 |
| Drilling Depth（mm） | 200 |
| Feed Stroke（mm） | 3400 |
| Travel Speed（ km/h） | 80 |
| Grade Capacity | 30° |
Air Pressure（Mpa） | 1.7-3.0 |
Air consumption（M³/min） | 15-35 |
Drill rod diameter（mm） | Φ89/102 |
Drill rod length（m） | 3 |
Lifting Force（T） | 18 |
| Drilling rig engine power（ kW） | 70 |
Rotational Speed（rpm） | 45-115 |
Rotational Torque（Nm） | 6200-9000 |
Mud pump | BW250 (optional) |
Carrier vehicle | Truck |
| chassis | 6*4 |
| All specifications can be customized according to customer needs, the above is for reference only | |
